ROADWAY PROTECTION FENCES - TIP IGH



  • DESCRIPTION
  • SINGLE SIDE PROTECTION FENCE
  • DOUBLE SIDE PROTECTION FENCE
  • ANTI-CORROSION PROTECTION
  • PROTECTION FENCE INSTALLATION
Profile A
Profile B

We make steel protection fences of IGH type in next variations:

      • single side protection fence (JEO)
      • double side protection fence (DEO)
      • ending of single side protection fence (oblique and semicircular)
      • ending of double side protection fence (oblique and semicircular))

All composite parts of protection fences are protected against corrosion. Their surfaces are paint coated and hot zinc coated.

SINGLE SIDE PROTECTION FENCE

The connection between the cloak and pole is accomplished by an arc shaped elastic distancer (sickle shape). The elastic distancer placed this way makes the fence gentler and more secure. This fence is usually placed on roadway shoulders, as well as on other facilities, wherever it is necessary to prevent the vehicles to run over to the other side.
The poles are placed at a mutual distance of 4 m. On risky places, where additional security is required, the mutual distance between the poles can be reduced to 2 or 1.33 m.

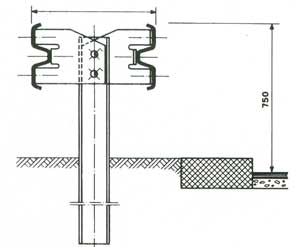

DOUBLE SIDE PROTECTION FENCE

The cloaks are placed on both sides and attached to the pole via an elastic distancer. Bolts connect both elastic bumpers to the pole. This fence is mostly used in the green belt between the two traffic lanes.
The poles are positioned at mutual distance of 4 m. On risky places, where additional security is required, the mutual distance between the poles can be reduced to 2 or 1.33 m.

ANTI-CORROSION PROTECTION

All steel elements are protected against corrosion in one of the following ways. They are:
zinc coated with hot treatment
paint coated
The coating layer ranges from 40 to 50 microns.

PROTECTION FENCE INSTALLATION
The project design specifies the fence installation places. The fences are installed at minimal distances of 0,5 m from roadway lanes. The poles are compressed into the ground or embankment at specified distances..

On bridges, facilities and concrete walls, poles with square plates are applied (10x300x30). Plates are welded to the pole and anchored to facilities with 4 standard bolts.
